Exploring Different Types of Garage Door Seals

What are the different types of garage door seals? Which one is best for you?

Garage doors ensure your home is safe. Not only from unwanted visitors like burglars but also from critters. Although most doors are designed to do just that, they still need help doing that.

One part of the garage door that is specifically designed to keep out dirt, water, insects, and other pests is the garage door seal.

There are different types of garage door seals, that are installed in different areas of the garage door, but serve the same purpose. There are bottom seals like the J-type and T-type seals.

Also, there are vinyl garage door seals, installed at the sides of the door. Finally, there are threshold seals, which are installed on, well, the threshold of the doors.

Let’s take a detailed look at all the garage door seal types and their functions.

Topic List

  1. What are the different types of garage door seals?

  2. Garage door bottom seals

  3. Seals that are installed on the side of the garage doors

  4. Threshold seals

  5. Final Words

  6. FAQs

What are the different types of garage door seals?

As opposed to the older days, garages nowadays have many different purposes. While once they were used to only shelter the cars, garages are now used to store other items, spend leisure time, etc.

This is why it is even more necessary now to protect the garage from dirt, water, and creepy crawlies. Garage door seals are a part of the garage door that is designed for this specific purpose.

These seals keep out anything that you don’t want in your garage. However, not all garage doors are installed in the same place, and there are different types of garage door weather stripping. They are:

1. Garage door bottom seals

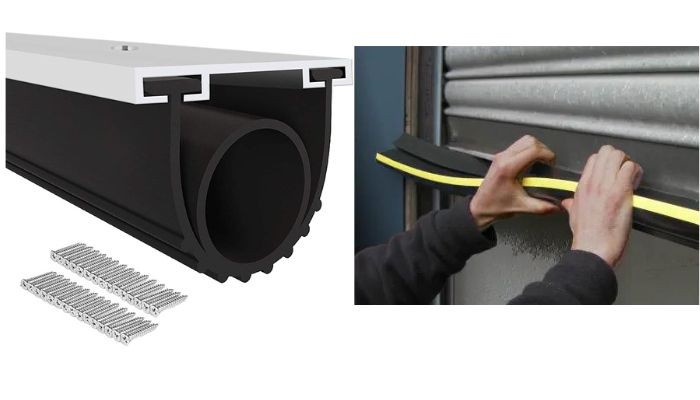

Garage door bottom seals



Bottom seals are one of the most popular kinds of garage door seals. These seals are installed on the bottom of the garage door as their names suggest. There are quite a few different types of garage door bottom seals. They are:

  • J-type garage door seal: J-type garage door bottom seals are one of the most popular types of garage door bottom seals. Connected to the garage door with single-channel retainers, these seals are quite versatile.

    When the door is closed, they make a J-shape under the door. The rubber-made seals are excellent in keeping water and dirt out.
  • T-type seals: One of the most common types of garage door bottom seals, T-type garage door seals are also made of top-quality rubber and vinyl.

    When the door is closed, these seals, which are like J-shape seals, are also connected to the door using single-channel retainers, making an inverted T-shape.

These seals are very efficient in keeping everything from dirt and water to pests out of the garage, so they are also very safe.

  • Bulb seals: Another of the overhead garage door bottom seal types that are attached to the door using single channel retainers, bulb garage door seals are usually made from rubber.

    The top of these seals look like an inverted T. while the bottom looks like a light bulb. These seals are used in garages where the floor is made of cement and is uneven.

When the door is closed, these seals spread out evenly over the uneven surface, making it impossible for water, dirt, and critters to enter the garage.

  • Beaded seals: The final rubber-made garage door gasket types that are attached to the garage doors’ bottom in this list, beaded garage door seals are not attached to doors with a single channel retainer.
    Rather, these seals are attached using a double-channel retainer. If you want to keep water out of your garage, these seals are one of the most effective.

This is because when you close the door, both sides of these types of garage door weather seals tend to bend upwards, which keeps water out.

  • Spring metal seals: While all the previously mentioned different types of garage door bottom seals are made of rubber or vinyl, spring metal seals are not. These seals are made of metal and are installed on the garage doors’ bottom. They are durable and help keep out water and other debris.

2. Seals that are installed on the side of the garage doors

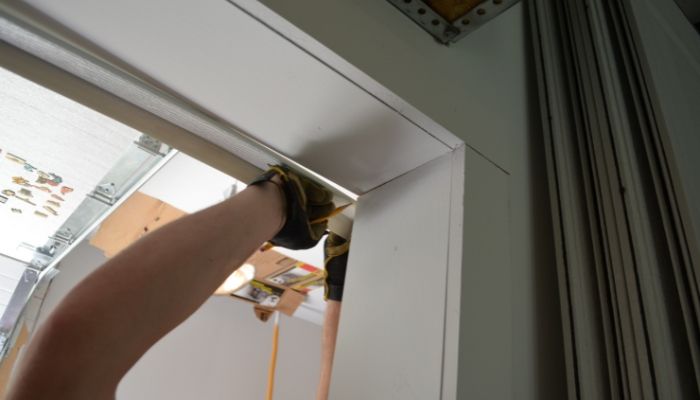

Seals that are installed on the side of the garage doors

Not all garage door gasket types are installed at the bottom of the garage doors. Some seals are installed on the sides of these doors. These seals are:

  • Vinyl seals: Unlike the bottom seals, vinyl garage door seals are not installed on the bottom of the garage door, but rather on their sides.

    This helps protect the garage, as these seals ensure that the garage door doesn’t let in anything unwanted by shifting. They seal any space the garage door might have at its sides.
  • Brush seals: Although brush seals are usually attached to the sides of the garage door, they can also be attached to the doors’ bottoms. These doors are excellent if you want to keep dust out of your garage. However, due to their design, they are not very effective in keeping insects away.

3. Threshold seals

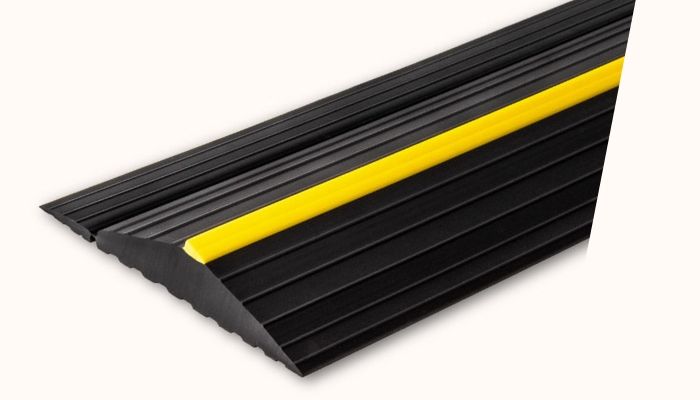

Threshold seals

While all the aforementioned seals are attached to the garage door itself, threshold garage door seals are not. Instead, they are installed on the threshold of the garage doors.

These are made from highly durable rubber, which can bear the weight of cars without any issues. They are excellent in keeping anything unwanted out of your garage, especially water.

When they are installed, they ensure the garage’s entrance is raised. This prevents water from getting into the garage and this is what makes them one of the best garage door seals.

If you wish, you can view your other topic: How to save your garage door

Final Words

Once you know about the different types of garage door seals, you can install the one that your garage door needs the most. If keeping out insects and water is your main criterion, you can install garage door bottom seals or threshold seals.

On the other hand, if you want to keep dust out, then you can get vinyl seals installed by hiring our expert garage door services

Are you from outside of California? No worries! If you are in Tampa, you can consult with Momentum Garage Door for all your garage door issues. Or if you’re anywhere in the United States, feel free to search with “your issue regarding Garage Door + your location” on Google. Hopefully, you will get the best garage door service providers with the top few results.

FAQ

1. How long does it take to install garage door seals?

Installing garage door seals is a quick affair. You can be done installing the seals on your garage doors within an hour.

2. What is the difference between vinyl and rubber garage seals?

The main difference between vinyl and rubber garage door seals is their flexibility. Vinyl garage door seals are more rigid than rubber ones.

3. How often do you need to replace the bottom seal on a garage door?

On average, you need to replace your garage door bottom seals every 5-10 years. But this timeframe will depend on the material of the seals and the environment.
